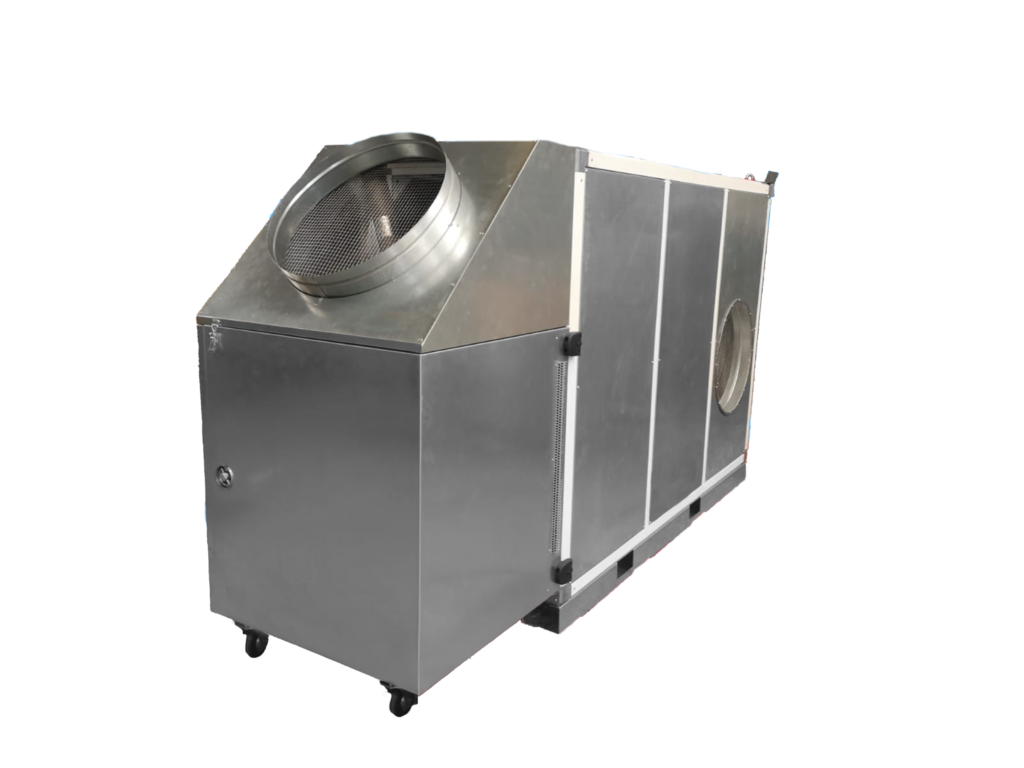

Biomass furnace GT-210


24/7 assistance



100% customer satisfaction
This generator has been designed according to all current biomass technologies.
With an output of 190 kW, it develops an airflow of 14,000m3/h.
It features a variable-speed, programmable multi-fuel burner with self-cleaning combustion chamber (slag and ash).
Maintenance access is easily accessible from the front.
The stainless steel heat exchanger (AISI 430) is equipped with a programmable cyclic vibration system, and the hearth with a worm screw for automatic ash removal.
The ashes are collected in a tank equipped with a full level alarm and door-opening contact.

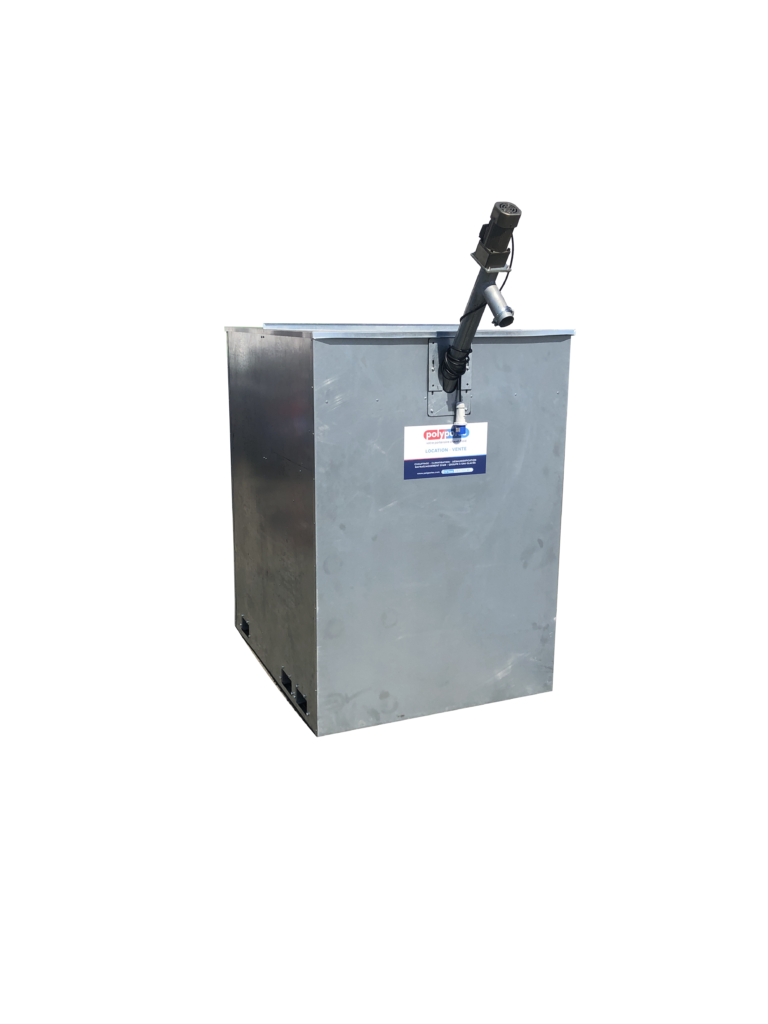

A 2m3 proximity silo (approx. 1300 kg of material) can be positioned to the left or right of the unit, transferred by auger.
Fume extractor as standard and complete control panel with WIFI communication.
25mm compressed rockwool insulation panels, aluminum frame profile.
Features
– Stainless steel heat exchanger and chamber (AISI 430) – Medium-pressure centrifugal fan
– Configurable horizontal/vertical air discharge
– Electrical panel integrated into unit
– Removable burner access door
– Exchanger cleaning and automatic ash emptying – Aluminum frame profiles
– 25 mm rockwool insulation sandwich panel
– Integrated smoke extractor
– Full ashtray alert
– Open ashtray door alert
– Safety thermostat alert
– 2 m3 pellet feed hopper
– Liftable with bull/crane and stackable
– Optional : duct return. diameter 600mm
