SPLIT industrial mobile air conditioner with water-cooled condenser.
Quick-connect hydraulic and electrical connections.
Maximum hydraulic length of 30 m between indoor and outdoor units
Condensate drain on outdoor unit
High and low pressure safety devices
Lateral transport handles + industrial castors

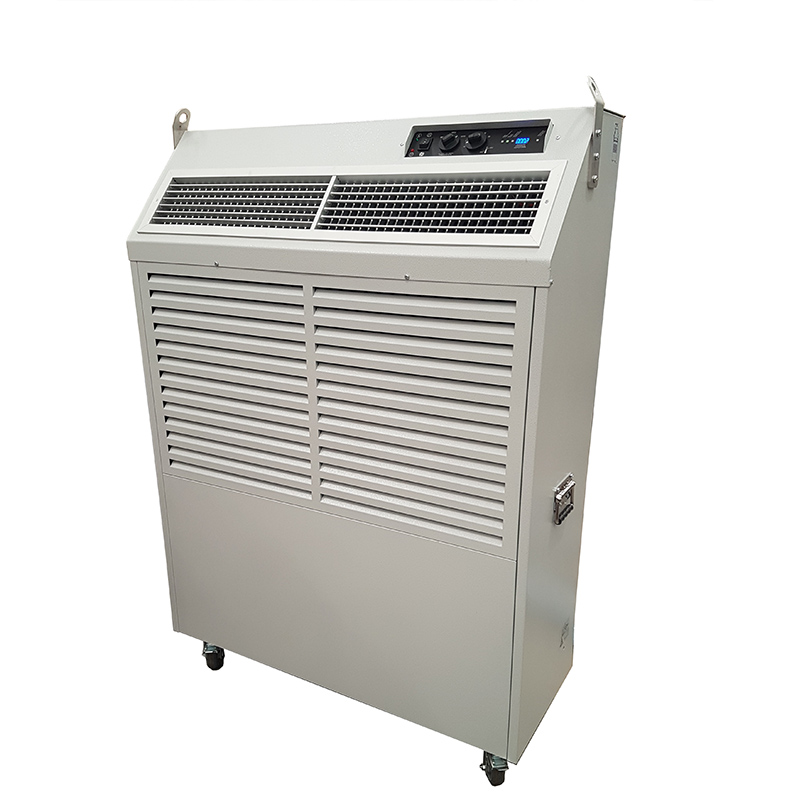

FAC 51 industrial split air conditioner (15kW)
Technical specifications
Cooling capacity (at 26°C 55%rh in /30°C out) 15000 W
Voltage / Power consumption three-phase 400 V + N – 50 Hz / 5800 W
Current consumption (max) 8.7 A (13 A)
Maximum hose length up to 30m (6 x 5 meters)
Temp. Operating indoor / outdoor 10-30°C / 10-40°C
Dimensions HxWxD main unit / outdoor 1513 x 1074 x 414 / 874 x 930 x 504
Noise level main unit 51 dB(A) at 3m
Weight main unit / outdoor 140 kg / 60 kg
Air flow (m3/h) : 3 speeds (unit. Ext) 2200/1800/1400 (2100)
Refrigerant R410A (1550 g)
