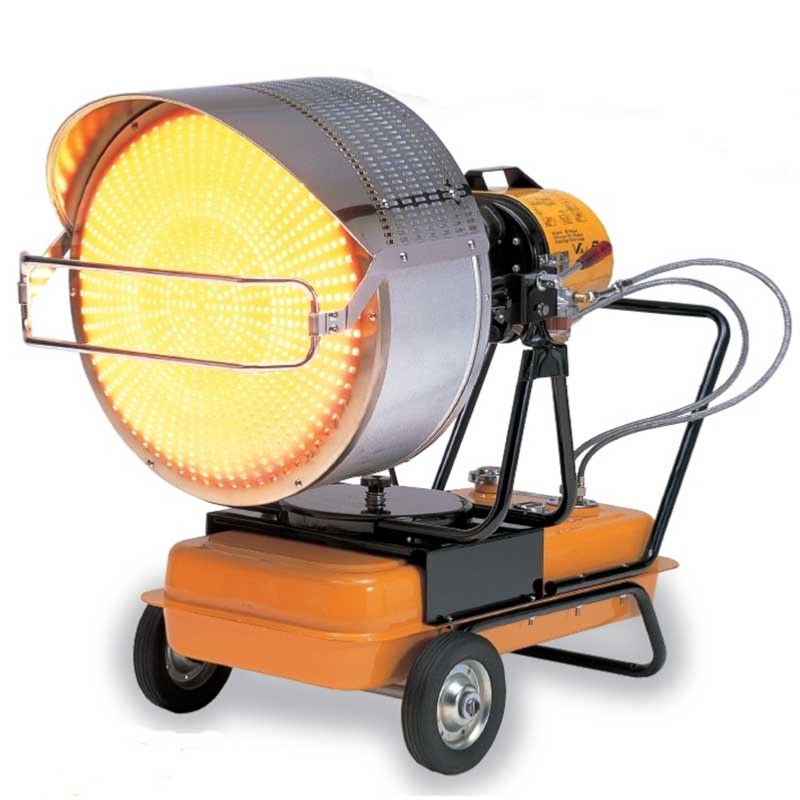

VAL6 EP6 oil-fired infrared radiant heater

The VAL6 EP6 mobile infrared oil-fired generator is equipped with a 100% efficient oil burner, making it a highly economical device. It’s the ideal solution for heating outdoor workplaces, well-ventilated areas with high ceilings, or for frost-free zones.
Infrared radiation, like solar radiation, heats objects or people directly, without being affected by temperature, draughts or even the volume of surrounding air. Because it burns directly, it is not suitable for ERP or small enclosed spaces.

Heats and defrosts industrial machines and engines

The VAL6 EP6 has maximum mobility thanks to 2 large wheels that adapt to uneven ground. Foldable stretcher increases leverage and facilitates handling.
Crane hook.
Large fuel tank (40 l), approx. 12 h, with integrated gauge
Equipped with a burner featuring top-of-the-range components (high-pressure pump, control box, photoelectric cell, etc.) for flawless reliability and low maintenance costs.
The operation of the devices is constantly monitored, enabling them to be used safely and unattended.
  • Available for rent
  • Available for sale

spare parts list for an infrared heater VAL6 EP6

SPARE PARTS LISTFOR VAL6 EP6

Features

Agricultural: zone heating in a large building, accelerated drying, frost protection

Construction: Workstation, concrete drying, plaster, paint, sealants, exterior wall drying.

Automotive: Workshop, body shop

Industry: heating for workshops, warehouses, stores.

Technical specifications

Power 40 kW
Number of firing stages: 1 firing stage
Supply voltage: mono 230 V / 50 Hz
Electricity consumption: 80
Fuel oil consumption: 3.17 l/h
Tank volume: 40 l
Operating time: 12.5 hours
Weight: 53 kg
Dimensions: 62 x 120 x 93 cm
IP rating: IP 40
Noise level at 3 m: 59
2-year warranty (excluding wearing parts: nozzle, etc.)

Safety instructions

– Do not touch the heater body during operation and for a certain period of time after shutdown, to allow the heater to cool down completely
– Do not install the heater next to fire or explosion hazards
– Keep the heater away from intense light sources (sun, lamp, etc.).)
– Do not use the heater in areas containing explosive, combustible or corrosive gases, or conductive dust
– Always lock the castors when operating the heater
– Do not move the heater during operation.

    All fields are mandatory.

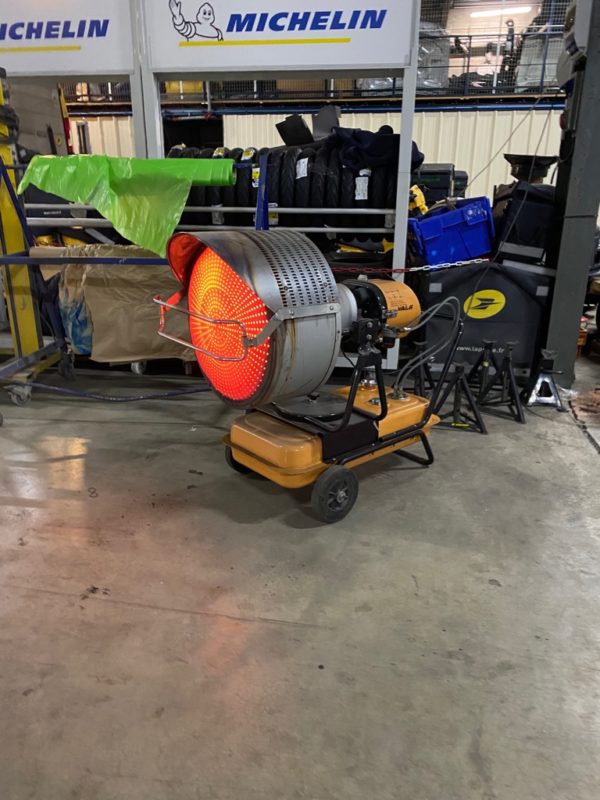

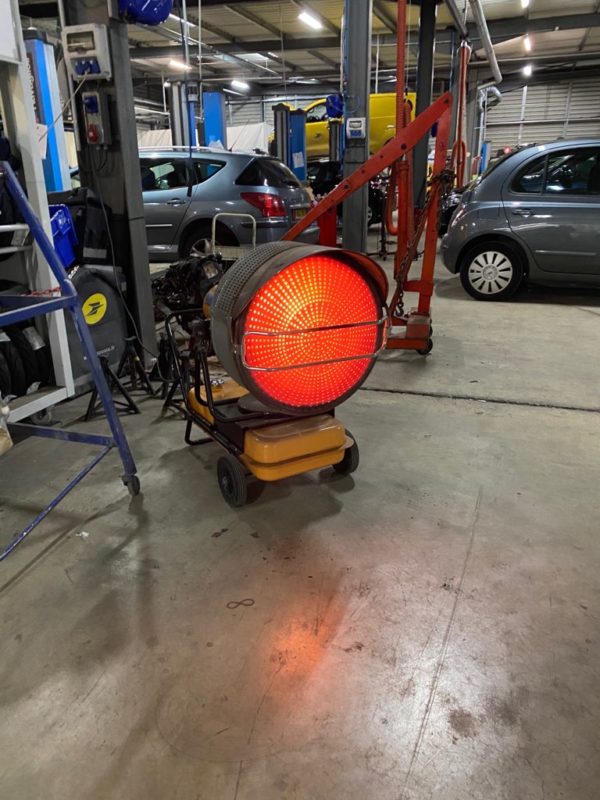

    Demonstration of the VAL6
