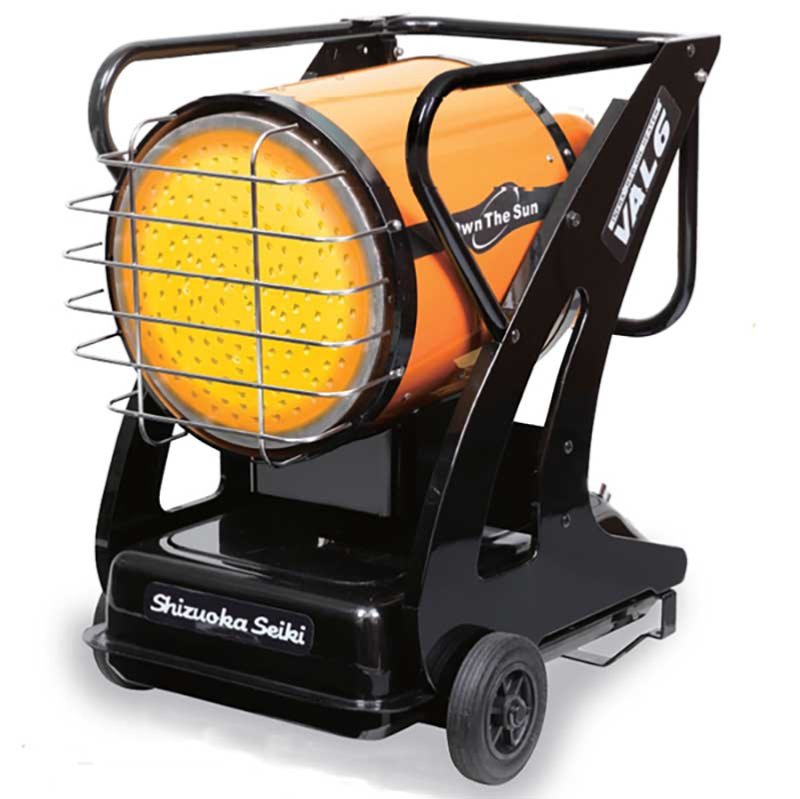

VAL6 MPX1 infrared radiant oil heater

The VAL6 MPX mobile infrared oil-fired generator is easy to transport thanks to its size. A practical and efficient appliance, it is equipped with an oil burner with 100% efficiency, making it highly economical. It’s the ideal solution for heating open-air workstations, well-ventilated areas with high ceilings, or for frost-free zones.
Radiation is insensitive to ambient temperature and draughts. This infrared generator offers the same efficiency in open-air or windswept premises as in large, enclosed buildings.

Heats and defrosts industrial machines and engines

The VAL6 MPX has maximum mobility thanks to 2 large wheels that adapt to uneven ground. Foldable stretcher increases leverage and facilitates handling.
Crane hook.
Large fuel tank (40 l), approx. 12 hours capacity, with integrated gauge
Equipped with a burner featuring top-of-the-range components (high-pressure pump, control box, photocell, etc.) for flawless reliability and low maintenance costs.
The operation of the devices is constantly monitored, enabling them to be used safely and unattended.
  • Available for rent
  • Available for sale

Applications

Agricultural: zone heating in a large building, accelerated drying, frost protection

Construction: workstations, concrete drying, plaster, paint, mastics, exterior wall drying.

Automotive: Workshop, body shop

Industry: heating for workshops, warehouses, stores.

Technical specifications

Power 16.3-18.3 kW
Number of burners: 2 burners
Supply voltage: single-phase 230 V / 50 Hz
Electricity consumption: 112
Fuel oil consumption: 1.4-1.55 l/h
Tank volume: 25 l
Operating time: 17 hours
Weight: 32 kg
Dimensions: 52 x 68 x 72 cm
IP rating: IP 40
Noise level at 3 m: 57
2-year warranty (excluding wearing parts: nozzle, etc.)

Safety instructions

– Do not touch the heater body during operation and for a certain period of time after shutdown, to allow the heater to cool down completely
– Do not install the heater near fire or explosion hazards
– Keep the heater away from intense light sources (sun, lamp, etc.).)
– Do not use the heater in areas containing explosive, combustible or corrosive gases, or conductive dust
– Always lock the castors when operating the heater
– Do not move the heater during operation.
